Copper Products

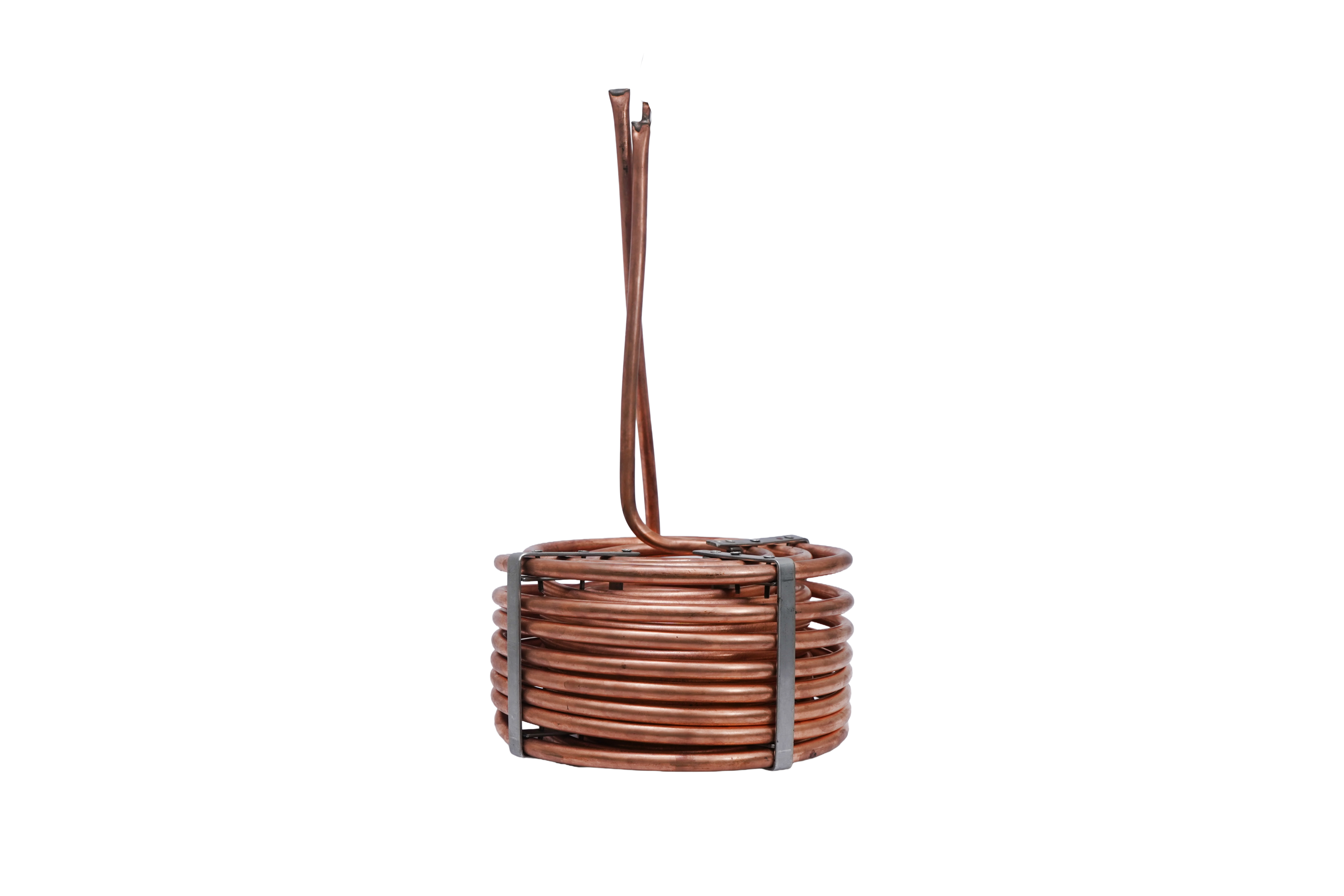

High-quality copper tubes, coils and helical coils designed for reliable performance across HVAC, refrigeration, plumbing and industrial applications.

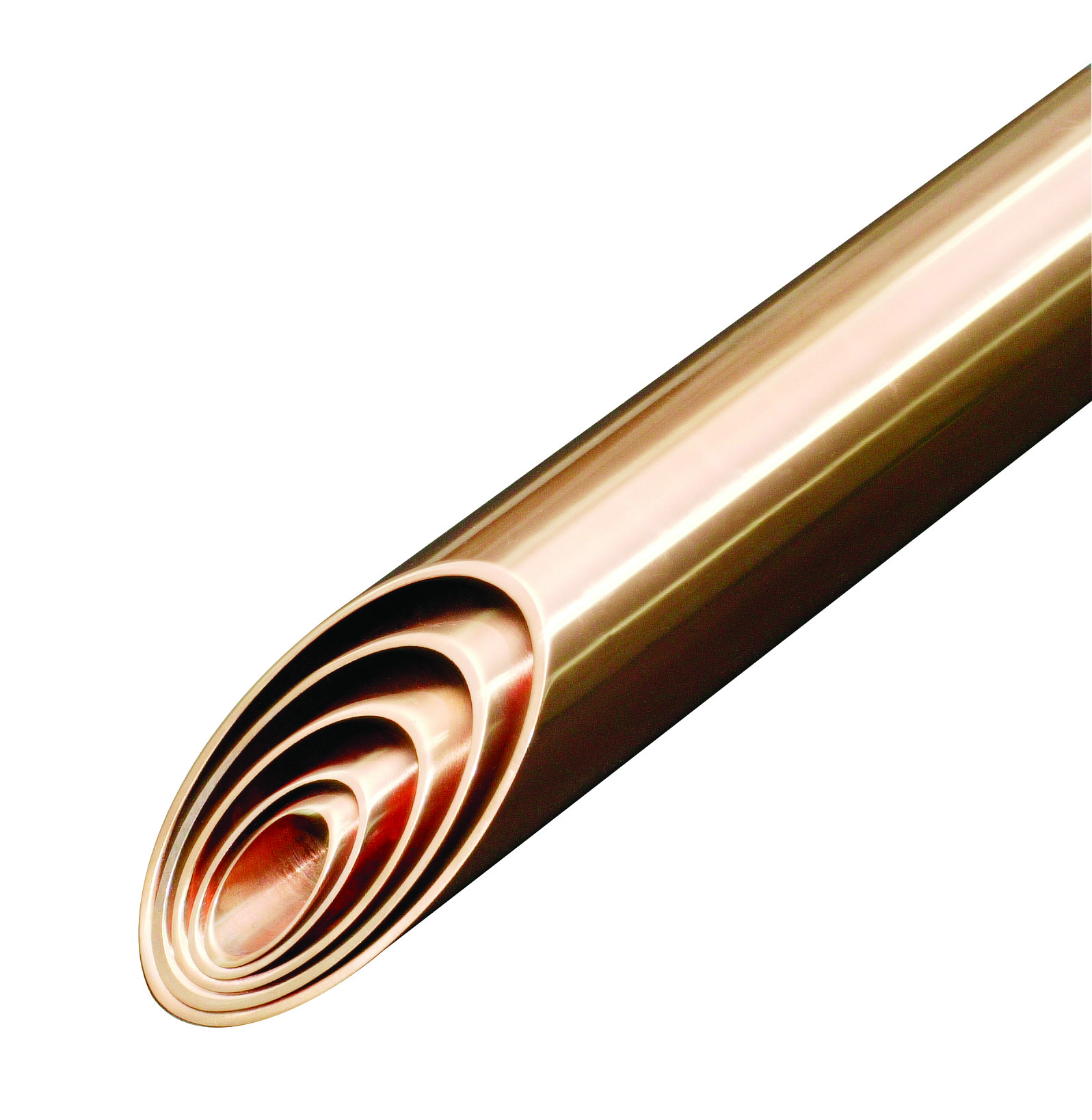

Copper Tubes
Tube Tech manufactures all types, sizes, shapes and tempers of copper tubes in full accordance with the appropriate product standards. Customers specify our products when quality and performance count.
Our copper tubes are produced with tight tolerances, consistent dimensions throughout the tube length and clean internal and external surfaces to support reliable heat transfer and corrosion resistance under demanding operating conditions.
Key Features
- • Tight dimensional tolerances and consistent tube dimensions
- • Clean surface finish inside and outside with no corrosive stains
- • Available in hard, half hard, quarter hard / light annealed and soft annealed tempers
- • Suitable for bending, flaring, expansion and fabrication processes
- • Engineered to deliver efficient heat transfer and long service life
End Uses
Technical Specifications
| Outer Diameter | 4.00 mm to 75.00 mm |
| Wall Thickness | 0.30 mm and above |
| Length | Available in length up to 30 meters |
| Tempers | Hard, Half Hard, Quarter Hard / Light Annealed, Soft Annealed |
| Copper Grades | DLP (C12000), DHP (C12200), ETP (C11000) |
| Standards | ASTM / BS / JIS / DIN / IS (as applicable); other standards on request |
DLP (Cu-DLP)
Standards: SB – 75, 111, 359, 395; BS 2871; JIS H 3300; DIN 1787; IS: 1545
Symbols: C 12000; C 106; C 1201; SW–CU 25; Cu-DLP
DHP (Cu-DHP)
Standards: SB – 68 / 75 / 111 / 280 / 359 / 395 / 819; BS 2871; JIS H 3300; DIN 1785; IS: 2501, 10773, 14810
Symbols: C -12200; C 106; C 1220; C 1220; Cu-DHP
ETP (Cu-ETP)
Standards: ASTM B-188; BS 2871; JIS H 3300; DIN 1787; IS: 2501
Symbols: C 11000; C 101; C 1100; ECU 58; Cu-ETP
